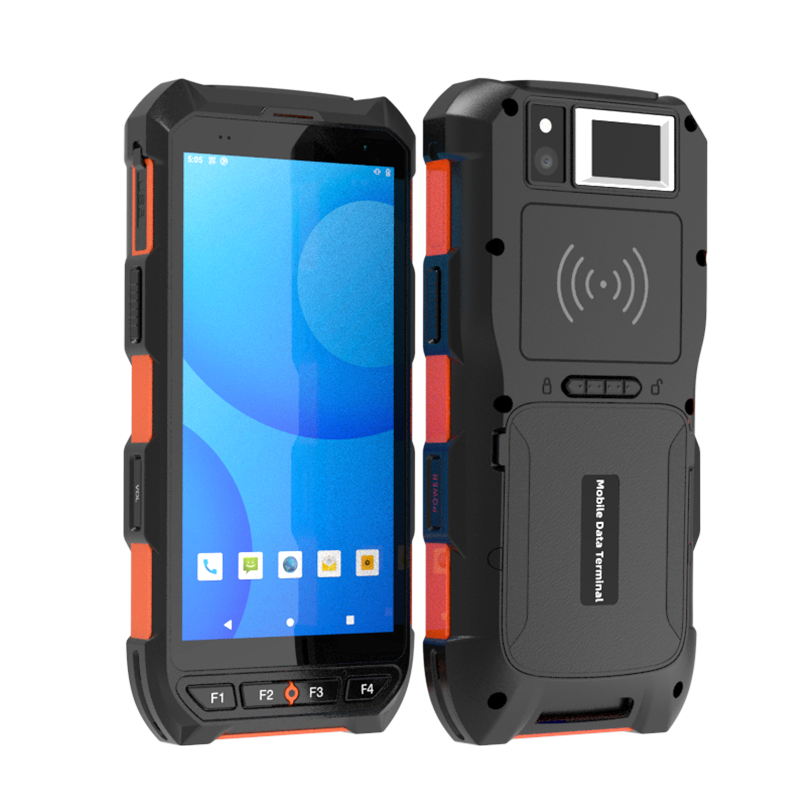

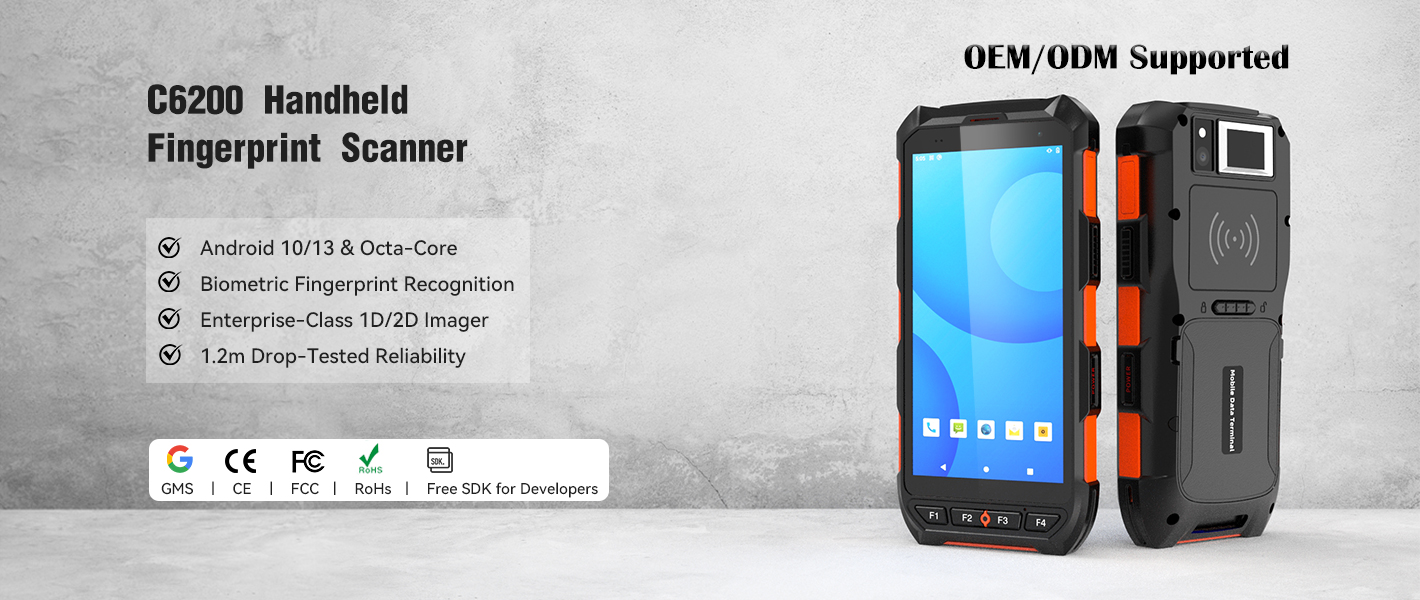

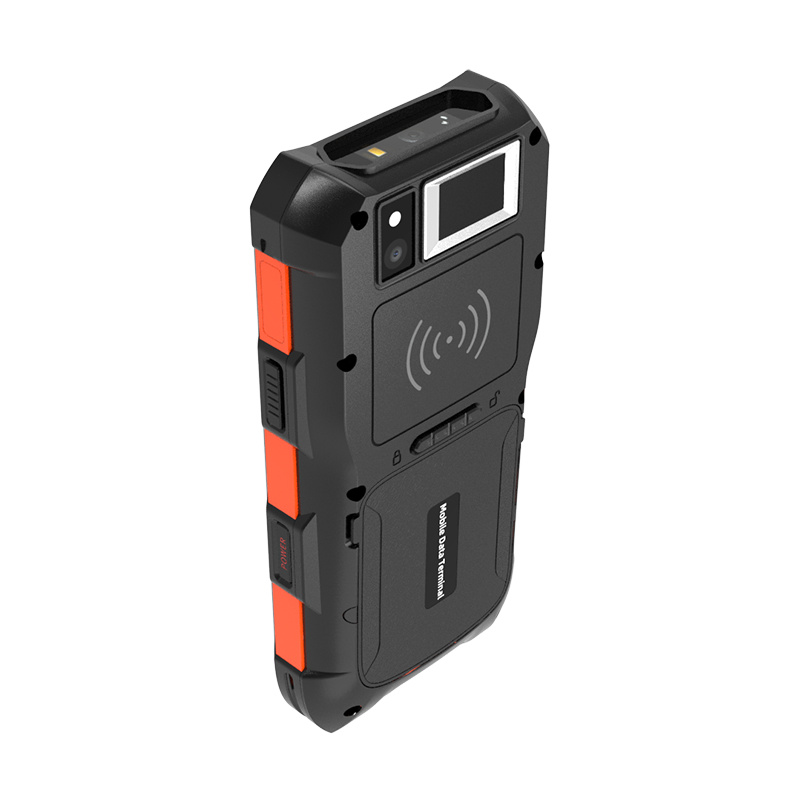

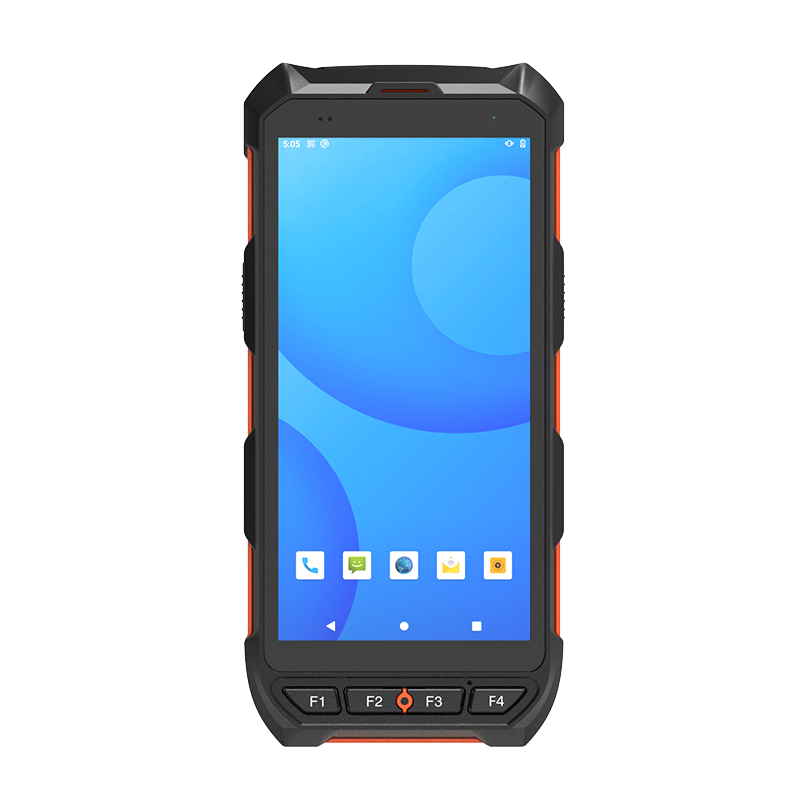

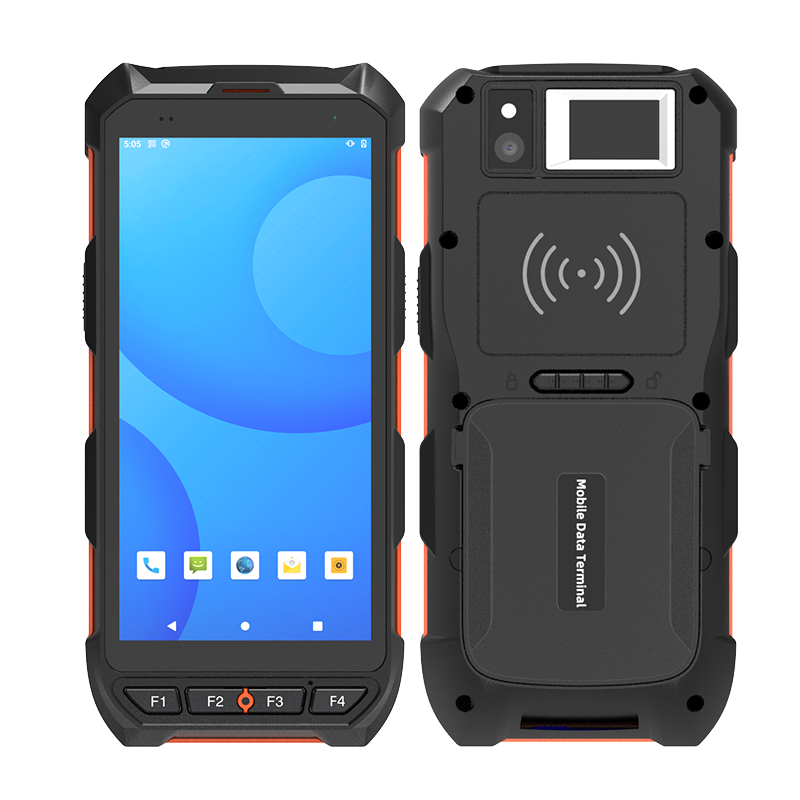

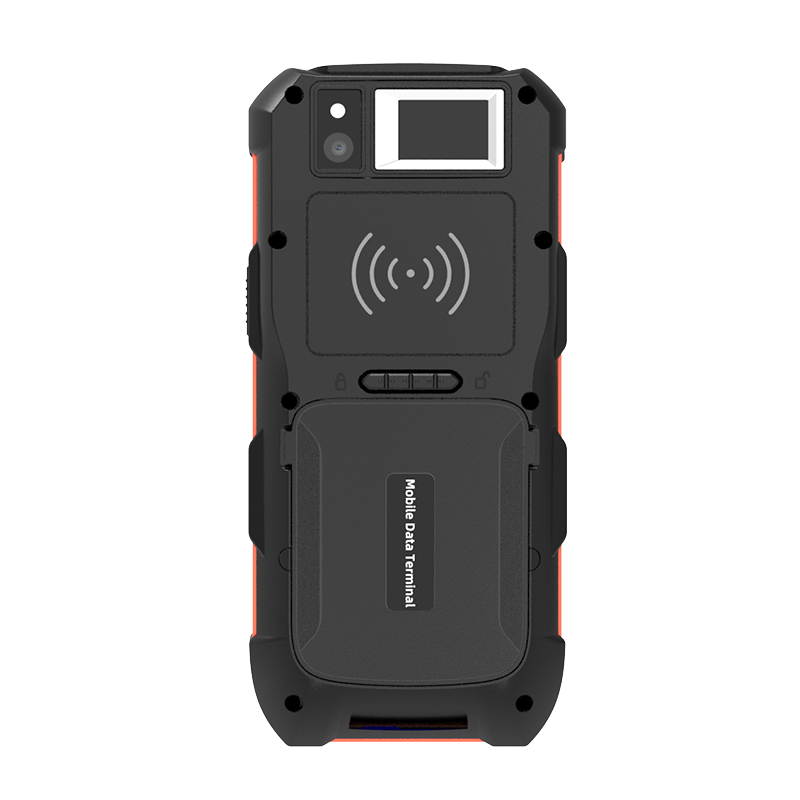

C6200 is an Rugged Android handheld terminal,features Android 10/13 OS and Cortex A73 2.0GHz octa-core CPU, 5.5″ high-definition touch screen,13MP cameras, comprehensive data capture options includes fingerprint recognition,built-in UHF RFID, barcode scanning, 125K/134.2K RFID, NFC, PSAM etc.which are which are widely used in security, national defense,livestock,logistics, power, warehousing etc.
| SPECIFICATIONS | |||
| PHYSICAL CHARACTERISTICS | USER ENVIRONMENT | ||
| Dimension | 170mm(H)x81mm(W)x28mm(D)±2 mm | Operating Temp | -20℃ to 50℃ |
| Weight | Net Weight :374g(including battery&wrist strap) | Storage Temp | -20℃ to 70℃ |
| Display | Tough 5.5 in. TFT-LCD(720×1440)touch screen with backlight | Humidity | 5%RH to 95%RH(non-condensing) |
| Backlight | LED backlight | Drop Specifications | 5ft./1.2 m drop to concrete across the operating temperature range |
| Expansions | 2 PSAM, 2 SIM, 1 TF | Sealing | IP65, IEC compliance |
| Battery | Rechargeable li-ion polymer, 3.8V, 5200mAh | ESD | ±15kv air discharge, ±8kv direct discharge |
| PERFORMANCE CHARACTERSTICS | FINGERPRINT READER(OPTIONAL) | ||
| CPU | Cortex A73 2.0GHz octa-core | Sensor | TCS1/FBI |
| Operating System | Android 10/13 | Sensor type | Capacitive, area sensor |
| Storage | 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) | Resolution | 508 DPI |
| Camera | Rear 13 megapixel, front 5.0 megapixel | Performance | FRR<0.008%, FAR<0.005% |
| Capacity | 1000 | ||
| DATA COMMUNICATION | BARCODE READER(OPTIONAL) | ||
| WWAN |
2G:GSM/GPRS/EDGE (GSM850/900/1800/1900) 3G:WCDMA(B1/B2/B4/B5/B8) 4G:LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20 LTE-TDD:B38/B39/B40/41F | 2D Imager Scanner | Honeywell 5703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1 |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | Symbologies | PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v5.0 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
| UHF RFID(OPTIONAL) | HF/NFC(OPTIONAL) | ||
| Frequency | 865~868MHz/920~925MHz/902-928MHz | Frequency | 13.56MHz |
| Protocol | EPC C1 GEN2/ISO 18000-6C | Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Antenna Gain | Circular antenna(2dBi) | R/W Range | 0-3cm |
| R/W Range | 2-3m(depend on tags and environment) | ||
