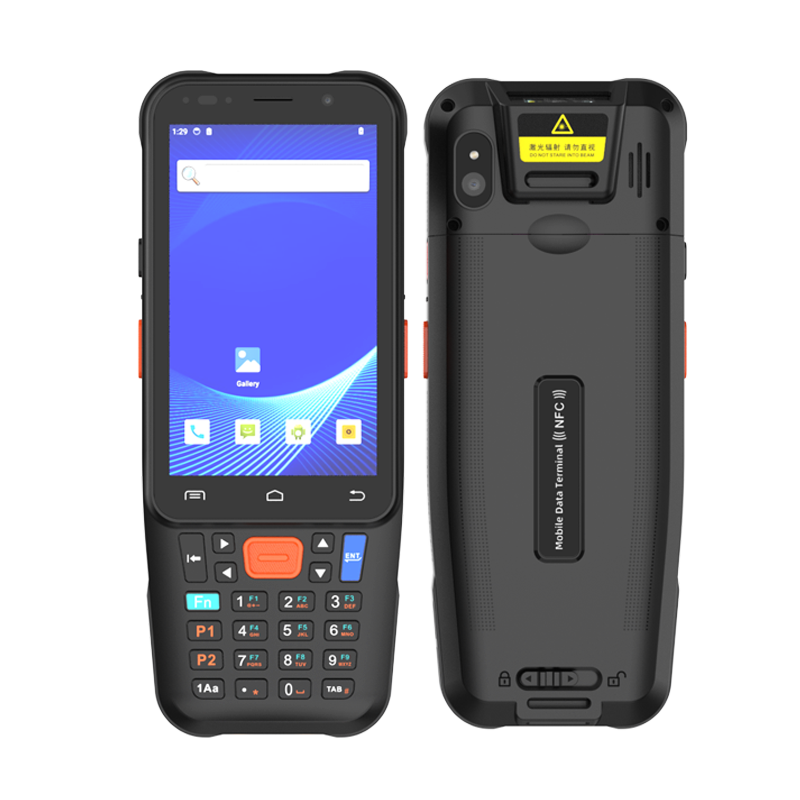

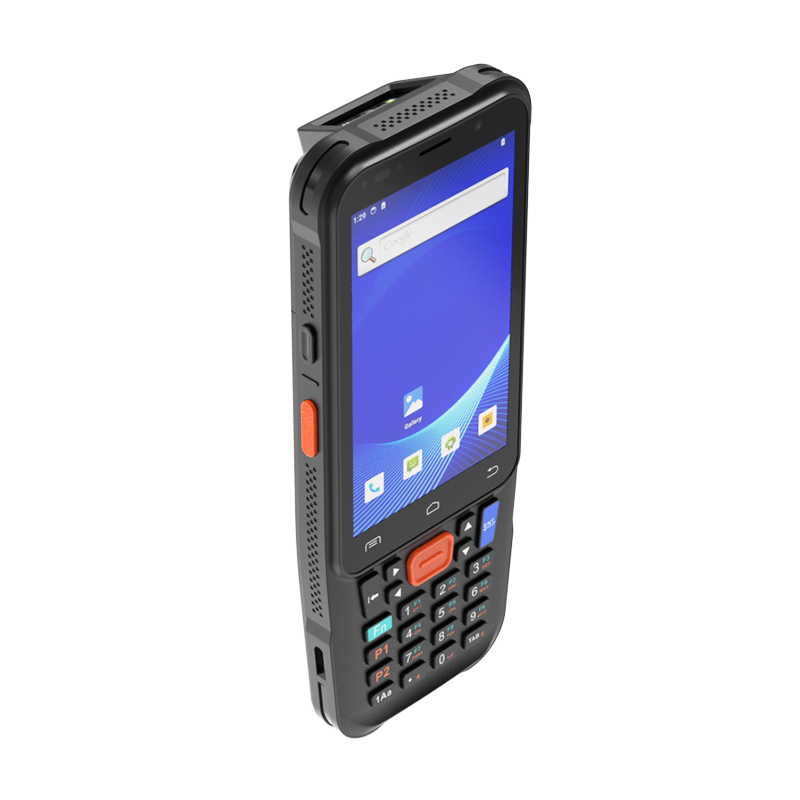

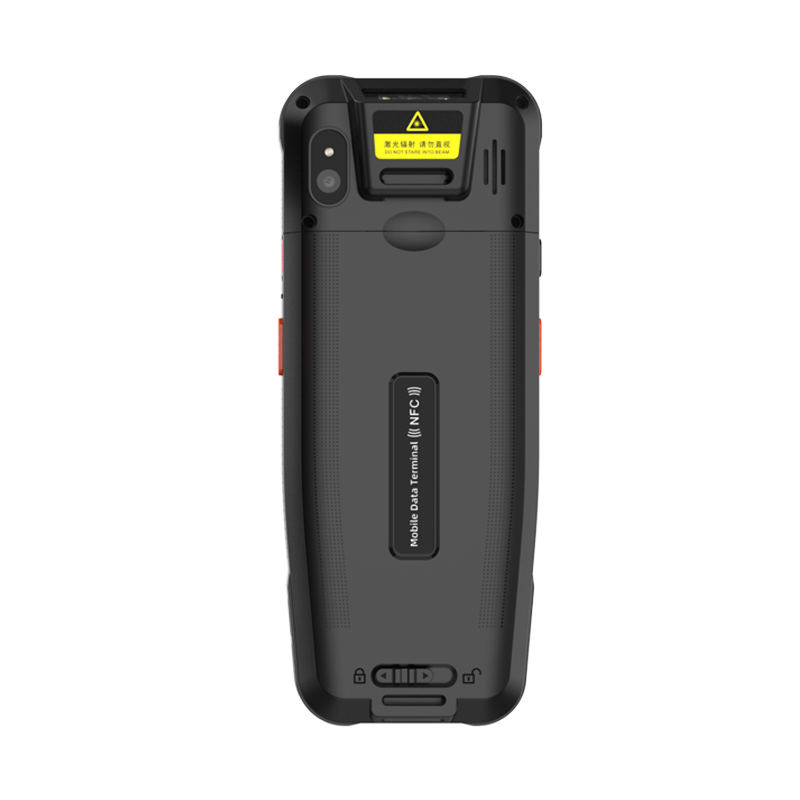

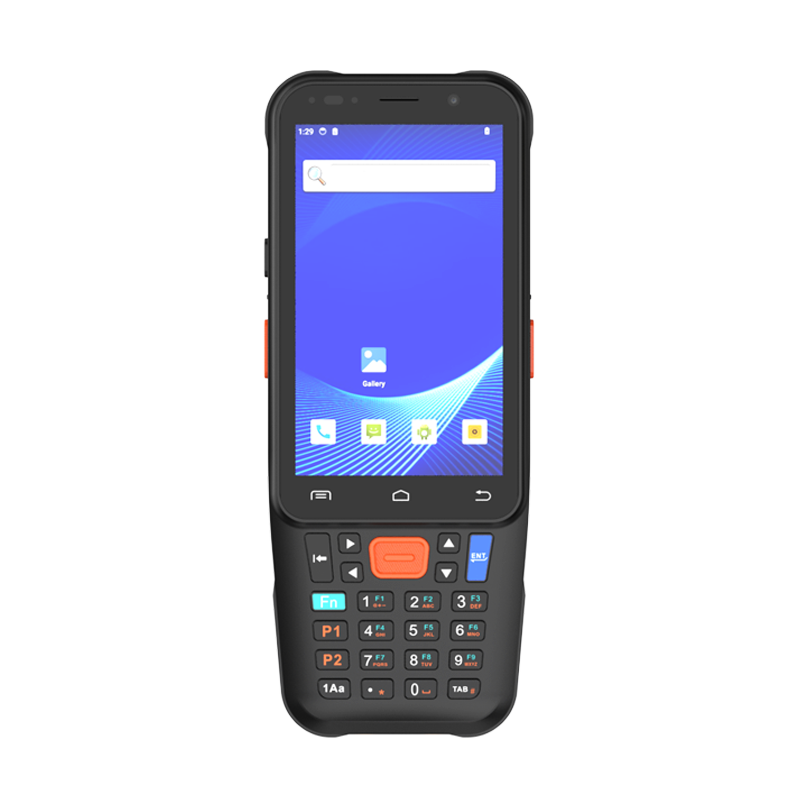

F1 is a rugged Digital Keyboard Handheld scaner with Android 15 OS and Octa-core processor, 4inch touchscreen,and features barcode scanning, NFC RFID reading, cameras, excellent performance flexibly applied to logistics, warehousing, retail, healthcare, government projects etc.
| SPECIFICATIONS | |||
| PHYSICAL CHARACTERISTICS | USER ENVIRONMENT | ||
| Dimension | 164mm(H)x67mm(W)x18.7mm(D)±2 mm | Operating Temp | -20℃ to 50℃ |
| Weight | Net Weight :287g | Storage Temp | -20℃ to 70℃ |
| Display | 4 inch touchscreen(480×800) | Humidity | 5%RH to 95%RH(non-condensing) |
| Backlight | LED backlight | Drop Specifications | 5ft./1.5 m drop to concreteacross the operating temperature range |
| Expansions | 1 SIM, 1 TF | Sealing | IP67, IEC compliance |
| Battery | Rechargeable li-ion polymer, 3.85V,5000mAh | ESD | ±15kv air discharge, ±8kv direct discharge |
| PERFORMANCE CHARACTERSTICS | DEVELOPMENT ENVIRONMENT | ||
| CPU | 2.3GHz octa-core | SDK | Handheld-Wireless Software Development Kit |
| Operating System | Android 15 | Language | Java |
| Storage | 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) | Environment | Android Studio or Eclipse |
| DATA COMMUNICATION | BARCODE READER(OPTIONAL) | ||
| WWAN |
2G:GSM/GPRS/EDEG (GSM850/900/1800/1900) 3G:WCDMA(B1/B2/B4/B5/B8) 4G:LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20 LTE-TDD:B34/B38/B39/B40/41F | Scan engine | 2D barcode for 1D/2D code |
| WLAN | 2.4G/5G dual band.Compliance with IEEE802.11a/b/g/n/ac | Symbologies | PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth 5 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
| NFC(OPTIONAL) | |||
| Frequency | 13.56MHz | R/W Range | 0 to 3cm |
| Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 | ||
| ACCESSORIES | |||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C | ||
| Optional | Cradle | ||
