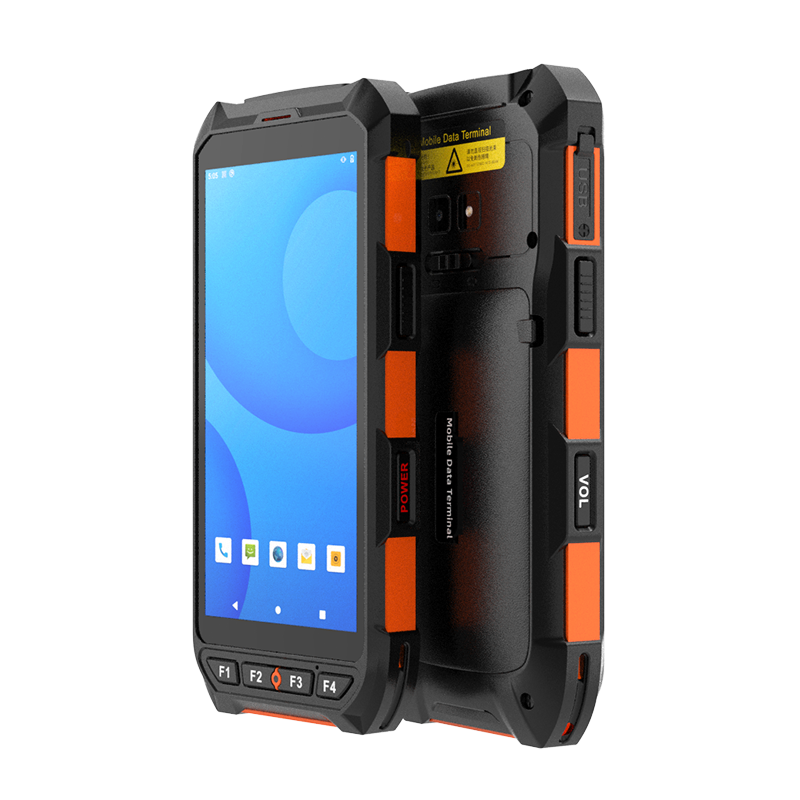

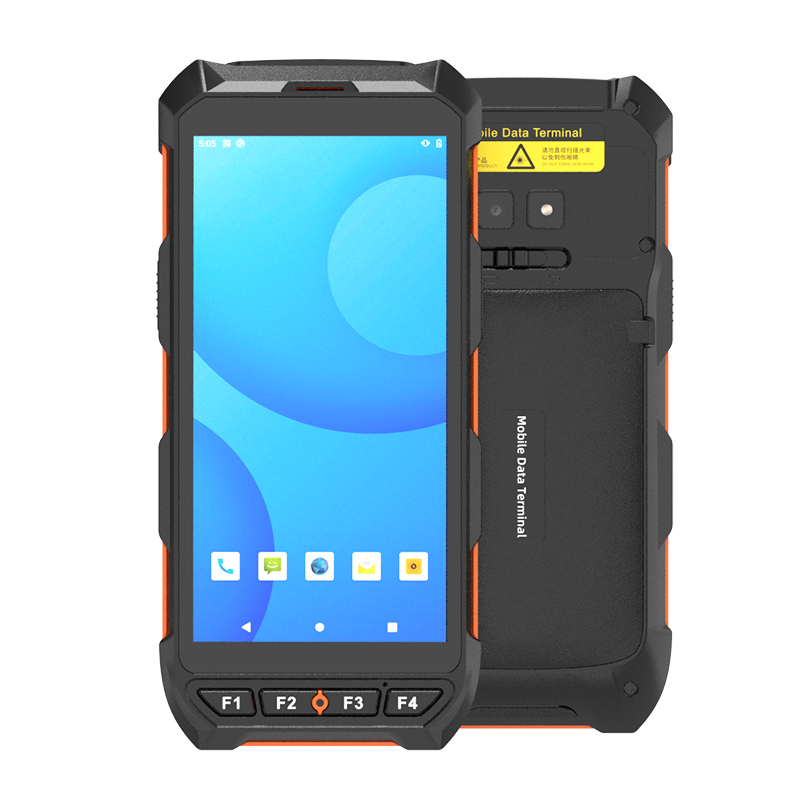

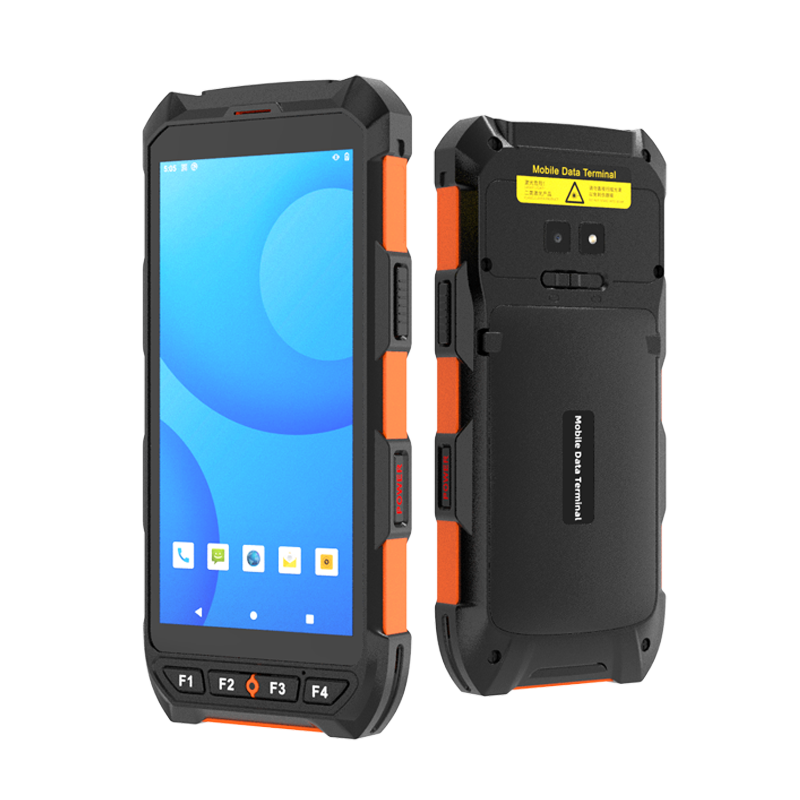

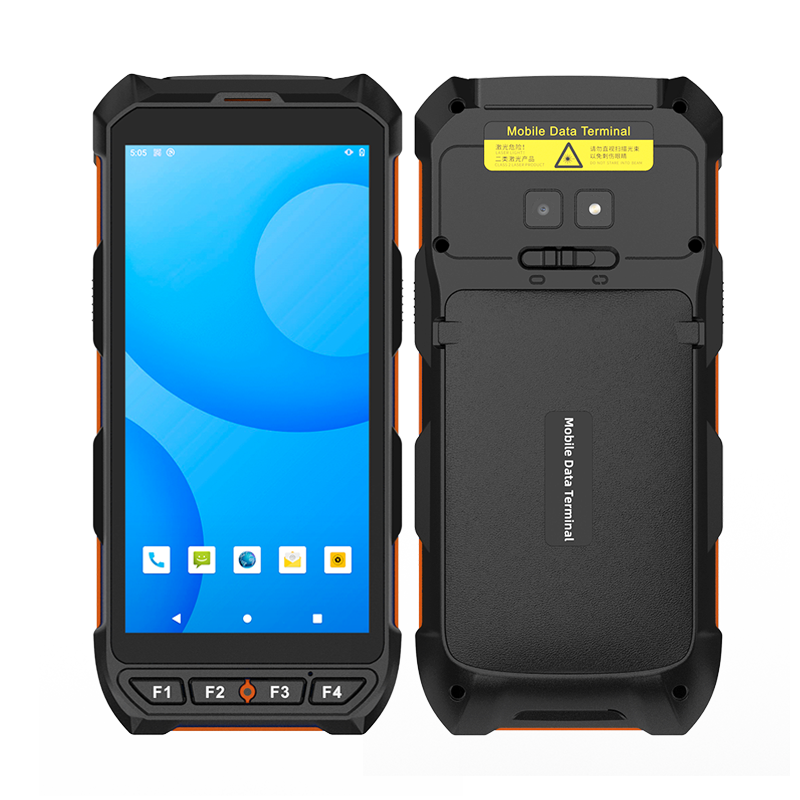

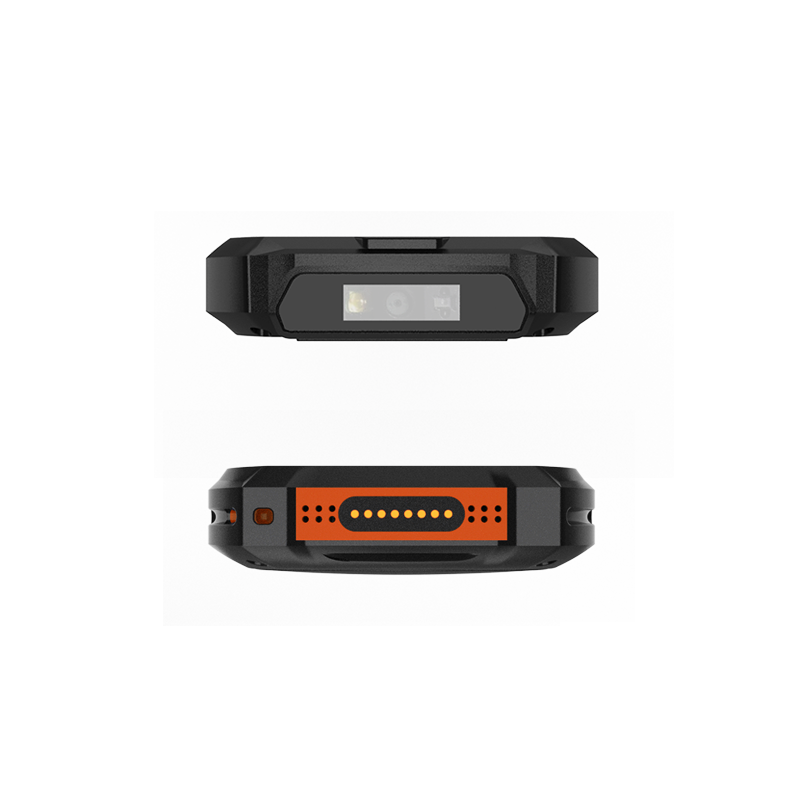

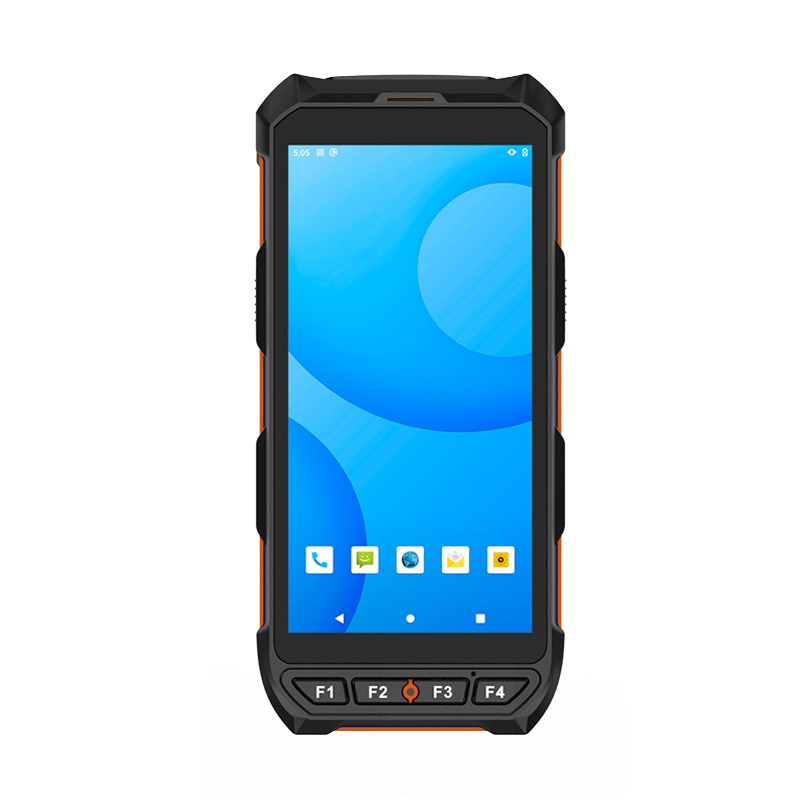

C6000 is a rugged Android industrial handheld computers, features Android 10/13 OS and Octa-core 2.0GHz CPU with smooth and stable system configuration,ultra Lightweight protable smart phone with powerful 1D&2D barcode scanning performance, NFC RFID reading, front and rear cameras, flexibly applied in a wide spectrum of industries, including logistics, warehousing, retail, healthcare, etc.
| SPECIFICATIONS | |||
| PHYSICAL CHARACTERISTICS | USER ENVIRONMENT | ||
| Dimension | 170mm(H)x80mm(W)x20mm(D)±2 mm | Operating Temp | -20℃ to 50℃ |
| Weight | Net Weight :307g(including battery&wrist strap) | Storage Temp | -20℃ to 70℃ |
| Display | Tough 5.5 in. TFT-LCD(720×1440)touch screen with backlight | Humidity | 5%RH to 95%RH(non-condensing) |
| Backlight | LED backlight | Drop Specifications | 5ft./1.5 m drop to concreteacross the operating temperature range |
| Expansions | 2 PSAM, 2 SIM, 1 TF | Sealing | IP65, IEC compliance |
| Battery | Rechargeable li-ion polymer, 3.8V,4800mAh | ESD | ±15kv air discharge, ±8kv direct discharge |
| PERFORMANCE CHARACTERSTICS | DEVELOPMENT ENVIRONMENT | ||
| CPU | Cortex A73 2.0GHz octa-core | SDK | Handheld-Wireless Software Development Kit |
| Operating System | Android 10/13 | Language | Java |
| Storage | 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) | Environment | Android Studio or Eclipse |
| Camera | Rear 13 megapixel, front 5.0 megapixel | ||
| DATA COMMUNICATION | BARCODE READER(OPTIONAL) | ||
| WWAN |
2G:GSM/GPRS/EDEG (GSM850/900/1800/1900) 3G:WCDMA(B1/B2/B4/B5/B8) 4G:LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20 LTE-TDD:B38/B39/B40/41F | 2D Imager Scanner | Honeywell 5703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1 |
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | Symbologies | PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth 5.0 | ||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | ||
| PSAM SECURITY(OPTIONAL) | NFC(OPTIONAL) | ||
| Protocol | ISO 7816 | Frequency | 13.56MHz |
| Baudrate | 9600, 19200, 38400,43000, 56000,57600, 115200 | Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Slot | 2 slots(maximum) | R/W Range | 0-3cm |
| ACCESSORIES | |||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C | ||
| Optional | Cradle | ||
